A Complete Drain Camera Package for Professional Plumbers
When CCTV inspections are part of your everyday plumbing work, having the right camera for different pipe sizes can make a significant difference.

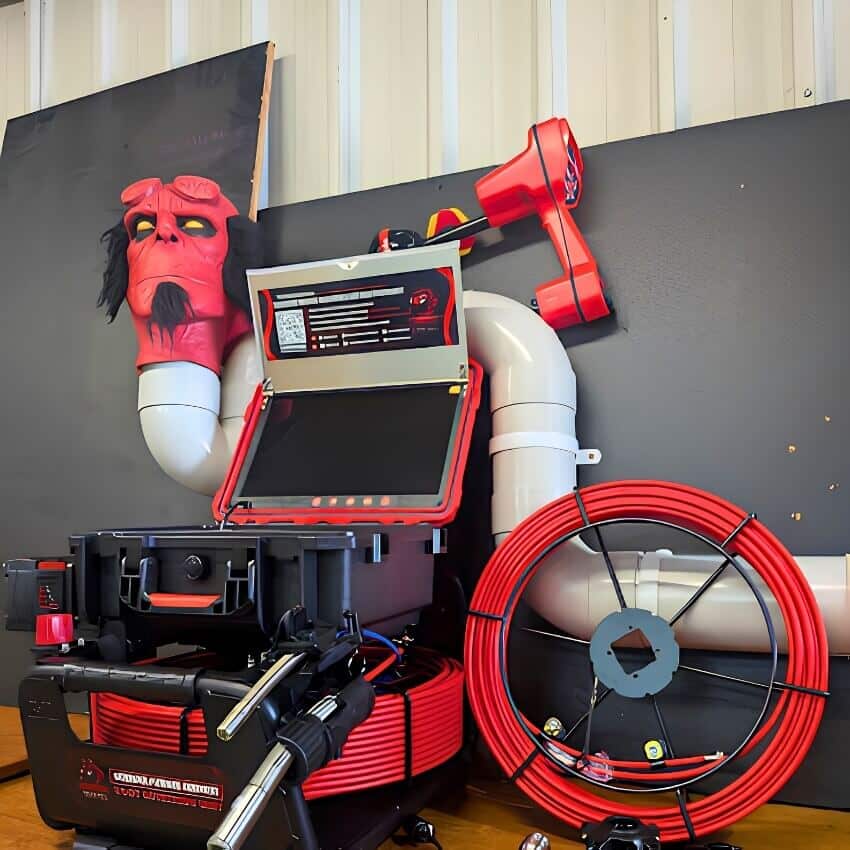

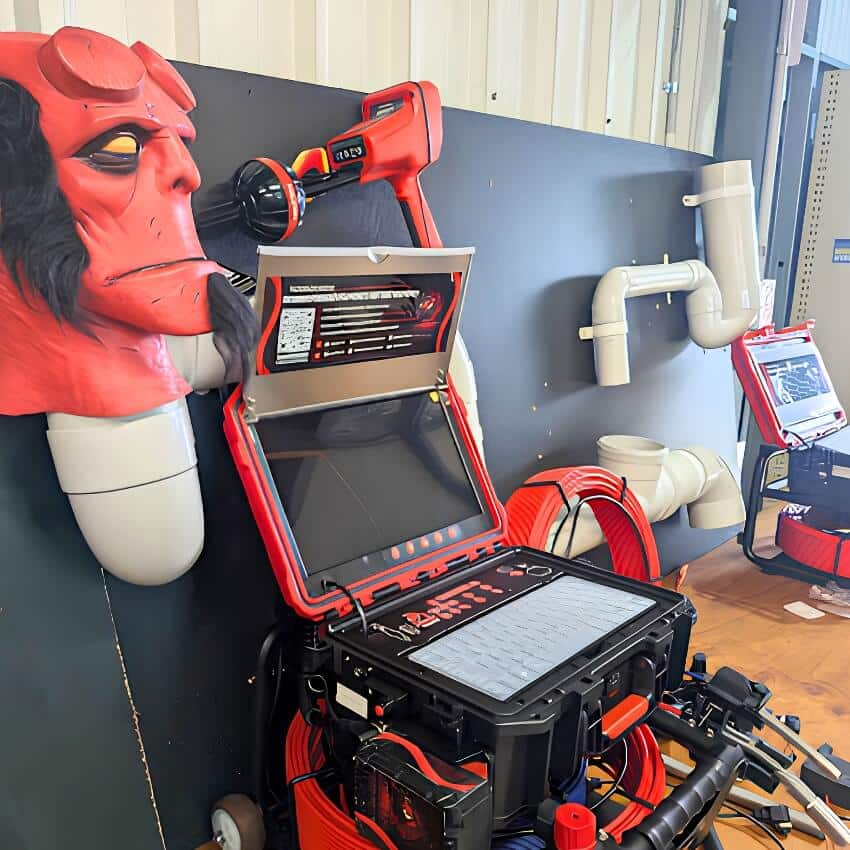

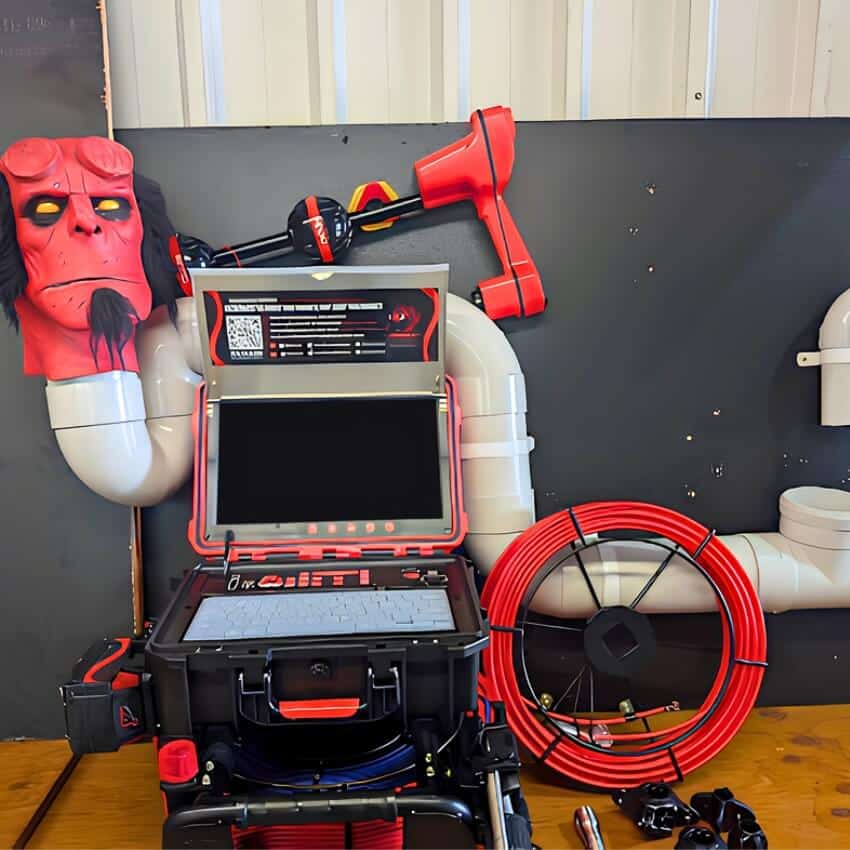

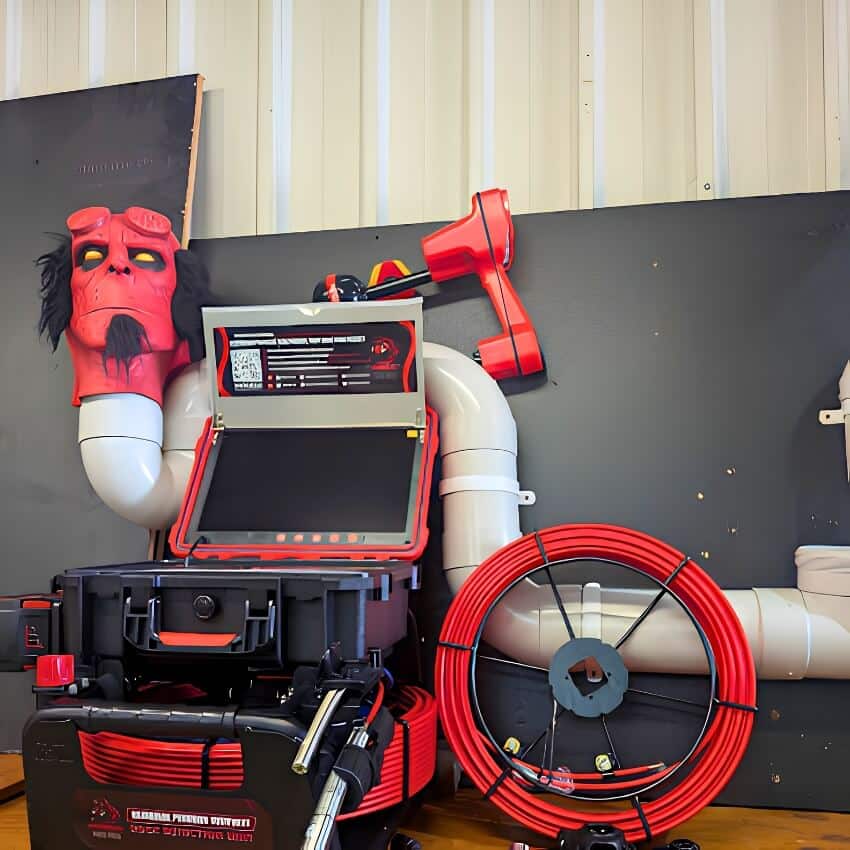

The Pro Drain Camera Pack is Razorback’s most complete professional package, built around The Double P Dual Drain Camera and expanded with an additional 29mm camera head, RIDGID Scout Locator, spare push rod and practical backup components.
From small internal waste lines and residential drainage through to larger sewer inspections, you can select the camera and push rod that best suit the job rather than carrying several separate inspection systems.
For NZ plumbers who regularly work across different types of drainage, it’s a versatile setup designed to cover a broad range of inspection requirements.

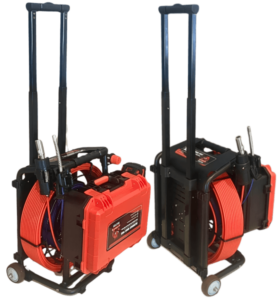

Built Around The Double P Dual Drain Camera

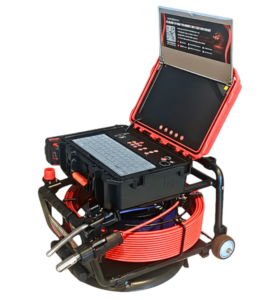

At the centre of the Pro Drain Camera Pack is The Double P Dual Drain Camera, combining two camera and push rod systems within one professional unit.
The Double P includes:
- 21mm HD 1080P Self-Levelling Camera Head with Built-In 512Hz Sonde
- 12.8mm 780P CMOS HD Camera Head with Built-In 512Hz Sonde
- 50m × 6.8mm Kink-Resistant Fibreglass Push Rod
- 40m × 4.8mm Kink-Resistant Fibreglass Push Rod
- Dual Battery System
- Heavy-Duty Wheels
- Integrated Trolley Handle
- 13.3-inch 1080P IPS Monitor
- USB & SD Card Recording
The two push rod systems allow you to move between smaller internal drainage and standard sewer inspections using the same main unit.
Three Camera Heads for Greater Inspection Flexibility
The Pro Drain Camera Pack adds a 29mm HD 1080P self-levelling camera head to The Double P system.
Together, the three camera sizes give you options for pipes ranging from 25mm to 225mm.

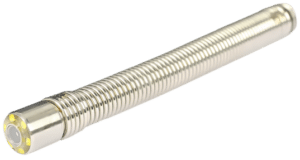

12.8mm Drain Camera Head
The compact 12.8mm camera head is paired with the slimmer 40m × 4.8mm push rod, making it suited to smaller-diameter plumbing applications such as:
- Internal Waste Pipes
- Floor Wastes
- Tight Bends
- Small-Diameter Drains
- Boundary trap inspections where conditions allow
Its built-in 512Hz sonde also provides locating capability when used with compatible locating equipment.
21mm Drain Camera Head
The 21mm HD 1080P self-levelling camera is well suited to regular drainage work including:
- 90mm Sewer Lines
- Stormwater Pipes
- Residential Drainage
- General Maintenance Inspections
- Blocked Drain Investigations
The self-levelling head keeps footage upright as the camera moves through the pipe, making recorded inspections easier to review.
29mm Drain Camera Head
The additional 29mm HD 1080P self-levelling camera extends the system’s capability for applications such as:
- Larger Sewer Lines
- Commercial Drainage
- Pipe Relining Assessments
- Larger-Diameter Inspections
- Pipes up to 225mm
Select the camera head and push rod combination that best suits the pipe and conditions you’re working with.
Locate Underground Faults with the RIDGID Scout
CCTV footage shows you what’s happening inside the pipe. The included RIDGID Scout Locator helps you determine where the compatible camera head is positioned underground.
Working with the camera heads’ built-in 512Hz sondes, the Scout can help when:
- Pinpointing blockages
- Locating damaged sections of pipe
- Identifying potential excavation points
- Planning drainage repairs
- Preparing more informed quotes
Combining inspection footage with locating capability gives you better information before excavation or repair work begins.
Built for Regular Professional Use
The Pro Drain Camera Pack is designed for plumbing businesses that use CCTV inspection equipment across a wide variety of jobs.
Key features include:
- Dual Battery Operation
- Heavy-Duty Wheels
- Integrated Trolley Handle
- 13.3-Inch 1080P IPS Monitor
- USB & SD Card Recording
- Two Push Rod Systems
- Three Camera Head Options
- 512Hz Locating Capability
- Interchangeable Components
The wheeled frame and trolley handle also make it easier to move the equipment between your vehicle and the work area.
Everything You Need in One Professional Package

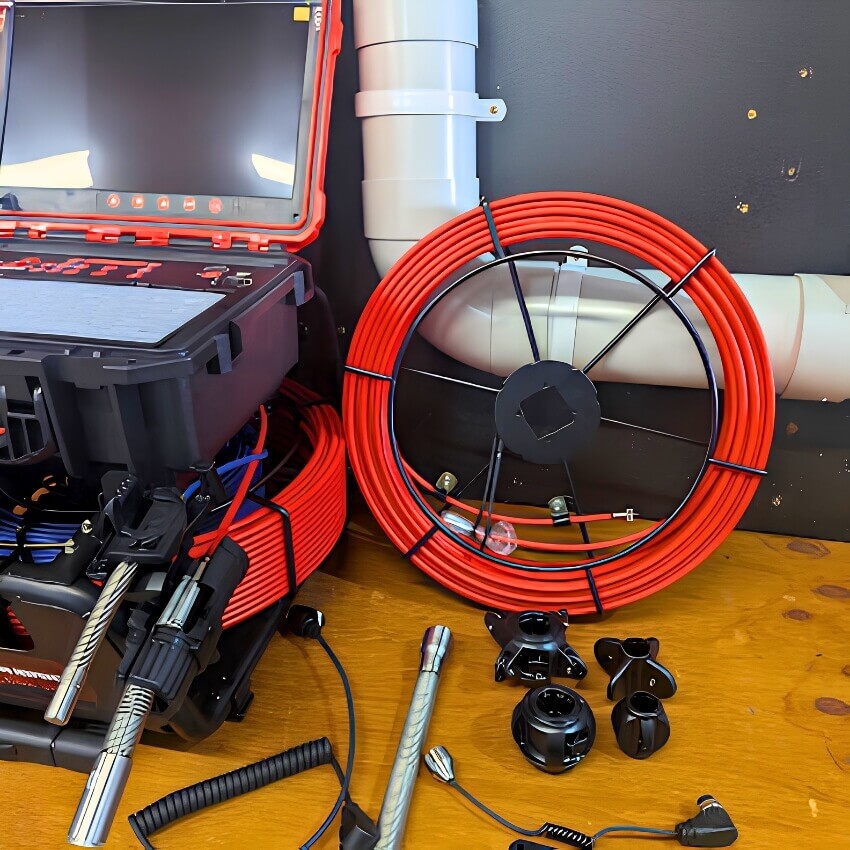

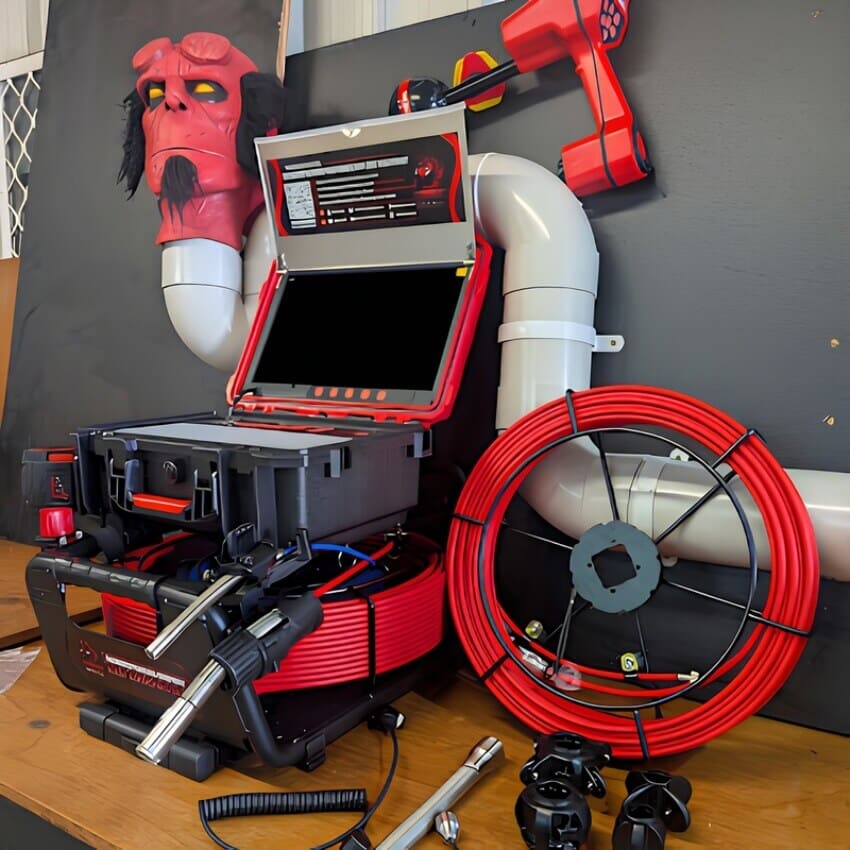

The Pro Drain Camera Pack includes:
- The Double P Dual Drain Camera
- 12.8mm Camera Head
- 21mm HD Self-Levelling Camera Head
- Additional 29mm HD Self-Levelling Camera Head
- 50m × 6.8mm Push Rod
- 40m × 4.8mm Push Rod
- Spare 50m × 6.8mm Push Rod
- RIDGID Scout Locator
- Wireless Keyboard
- USB & SD Card Recording
- Four Interchangeable Skids
- Spare Battery Cradle
- Spare Control Box Cable
- Diagnostic Test Cable
The combination of multiple inspection options and backup components helps reduce reliance on a single camera or push rod configuration.
Four Interchangeable Skids Included
The Pro Drain Camera Pack includes four interchangeable skids to help protect and stabilise the larger camera heads during inspections.
Included sizes:
- 46mm
- 64mm
- 78mm
- 105mm
Choose the skid that best suits the camera head, pipe diameter and inspection conditions.
Compatible with the Batteries You Already Use
Choose the battery cradle that matches the cordless tools your business already carries.
Compatible platforms include:
- Milwaukee
- Makita
- DeWalt
That means you can continue using your preferred battery platform instead of introducing another battery system solely for your drain camera.
Backup Components to Help Reduce Downtime
Professional inspection equipment is regularly exposed to demanding site conditions, so having key replacement components available can be useful.
The Pro Drain Camera Pack includes:
- Spare 50m × 6.8mm Push Rod
- Spare Battery Cradle
- Spare Control Box Cable
- Diagnostic Test Cable
These components can help with troubleshooting and replacement if part of the system needs attention.
Warranty & NZ Support
When you purchase directly from Razorback Drain Pros NZ, your Pro Drain Camera Pack is backed by warranty protection and local support.
Your package includes:
- 12-month factory warranty on all parts
- Additional 12 months of Control Box coverage when purchased direct from Razorback
- Local NZ technical support
- Replacement and spare parts available in New Zealand
- Replaceable and upgradeable Razorback components
Having access to local support and spare components can help reduce delays when equipment needs servicing, troubleshooting or replacement parts.
A Professional System for a Wider Range of Drainage Work
The Pro Drain Camera Pack brings together three camera head sizes, two push rod systems, professional recording capability and RIDGID locating equipment in one comprehensive inspection setup.
Instead of relying on one camera configuration for every job, you can choose the equipment that better suits the pipe diameter and inspection conditions.
Whether you’re investigating blocked drains, inspecting small waste lines, locating underground faults or documenting larger drainage and relining work, the Pro Drain Camera Pack gives NZ plumbers a versatile system designed for regular professional use.
Frequently Asked Questions
What pipe sizes can the Pro Drain Camera Pack inspect?
The Pro Drain Camera Pack is designed for inspections across 25mm–225mm pipes.
Its 12.8mm, 21mm and 29mm camera heads provide different options for small internal drainage, everyday sewer inspections and larger-diameter pipes.
What is included in the Pro Drain Camera Pack?
The package includes The Double P Dual Drain Camera, an additional 29mm HD camera head, 50m × 6.8mm and 40m × 4.8mm push rod systems, a spare 50m × 6.8mm push rod, RIDGID Scout Locator, four interchangeable skids, wireless keyboard, recording capability and backup components.
Why does the Pro Drain Camera Pack include three camera heads?
Different pipe diameters and inspection conditions require different camera configurations.
The 12.8mm camera is designed for smaller-diameter drainage, the 21mm self-levelling camera is suited to everyday maintenance work, and the 29mm self-levelling camera provides another option for larger drainage and sewer inspections up to 225mm.
Is the 12.8mm camera self-levelling?
No. The 12.8mm camera is a 780P CMOS HD compact camera head with a built-in 512Hz sonde.
The 21mm and 29mm HD 1080P camera heads provide the self-levelling functionality.
Can I locate the camera underground with this system?
Yes. The camera heads include 512Hz sondes, and the included RIDGID Scout Locator can detect the transmitted signal to help determine the camera’s underground position.
This can help when locating faults, planning repairs and identifying potential excavation points.
Which battery systems are compatible?
The Pro Drain Camera Pack is available with compatibility for Milwaukee, Makita and DeWalt battery platforms.
Choose the battery cradle that matches the tools your business already uses.
Does the Pro Drain Camera Pack come with a warranty?
Yes. Razorback drain cameras include a 12-month factory warranty on all parts.
When purchased directly from Razorback Drain Pros NZ, the Control Box receives an additional 12 months of coverage, giving it a total of two years of warranty protection.
Is the Pro Drain Camera Pack suitable for pipe relining inspections?
Yes. The combination of multiple camera sizes, HD recording and locating capability makes the Pro Drain Camera Pack suitable for a range of inspection work, including pre- and post-relining assessments.
The appropriate camera and skid should be selected according to the pipe size and conditions of the individual inspection.
Can components be replaced or upgraded later?
Yes. Razorback systems use replaceable and upgradeable components, and spare parts are available through Razorback Drain Pros NZ.
This allows individual components to be serviced, replaced or upgraded without necessarily replacing the complete inspection system.
Is support available in New Zealand?
Yes. Razorback Drain Pros NZ provides local support and access to spare parts in New Zealand, helping customers obtain technical assistance and replacement components when required.
